RANGER 1000 SPECIFICATIONS

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Type
4-Stroke Twin Cylinder SOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
61 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,000 lb (453.6 kg)
Estimated Dry Weight
1,437 lb (652 kg)
Fuel Capacity
11.35 gal (43 L)
Ground Clearance
12 in (30.5 cm)
Hitch Towing Rating
2,500 lb (1,133.9 kg)

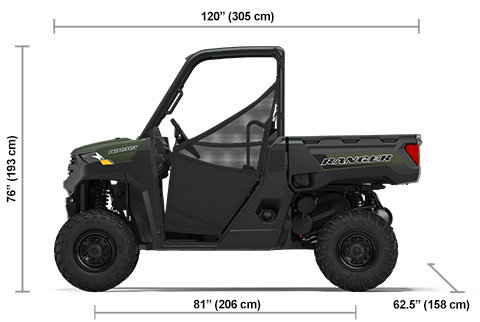

Overall Vehicle Size (L x W x H)
120 x 62.5 x 76 in. (305 x 158 x 193 cm)
Payload Capacity
2,070 lb (939 kg)
Person Capacity
3
Wheelbase
81 in (206 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission

Specifications

Adjustable Driver Seat
Not Equipped
Cargo System
Lock & Ride
Hitch Type
Standard 2 in (5 cm) Receiver
Instrumentation
4" LCD Rider Information Center:  User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder,  DC Outlet
Lighting
Halogen Headlamps, 55W Low Beam, 60W High Beam, Dual LED Taillamps
Other Standard Features
Polaris Pulse Electrical System (3 position), Standard In-Dash SAE Charge Port
Tilt Steering
Standard

Tires / Wheels

Electronic Power Steering
Not Equipped
Front Tires
25 x 10-12; Carlisle 489
Rear Tires
25 x 11-12; Carlisle 489
Wheels
Stamped Steel

Suspension

Front Suspension
Dual A-Arm 10 in. (25.4 cm) Travel
Rear Suspension
Dual A-Arm, IRS 10 in (25.4 cm) Travel
61
Horsepower
11.35
Gallon fuel capacity
2"
Hitch receiver
Ranger 1000 Sage Green Specifications
