RANGER 570 Full-Size Specifications

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Single Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
44 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.5 x 54 x 11.5 in (93 x 137 x 29 cm)
Box Capacity
800 lb (363 kg); California 600 lb (272.2 kg)
Estimated Dry Weight
1070.85 lb (486 kg)
Fuel Capacity
9 gal (34.1 L)
Ground Clearance
10.5 in (26.7 cm)
GVW
2642 lbs
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Overall Vehicle Size (L x W x H)
114 x 60 x 74 in (290 x 152 x 188 cm)
Payload Capacity
1,500 lbs (680.4 kg)
Person Capacity
3
Wheelbase
79 in (200.7 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Specifications

Adjustable Driver Seat
Not Equipped
Cargo System
Lock & Ride®
Color / Graphics
Sage Green
Electronic Power Steering
Not Equipped
Instrumentation
Single Analog Dial with 2” LCD Rider Information Center: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seatbelt Reminder Light, DC Outlet
Lighting
50W Headlight, LED Taillight
Tilt Steering
Standard

Tires / Wheels

Front Tires
25 x 8-12; Carlstar 489
Rear Tires
25 x 10-12; Carlstar 489
Wheels
Stamped Steel

Suspension

Front Suspension
MacPherson Strut 9 in (22.9 cm) Travel
Rear Suspension
Dual A-Arm, IRS 10 in. (25.4 cm) Travel
Turning Radius
16 ft (487.7 cm)
44
HP
60"
WIDTH
10.5"
GROUND CLEARANCE

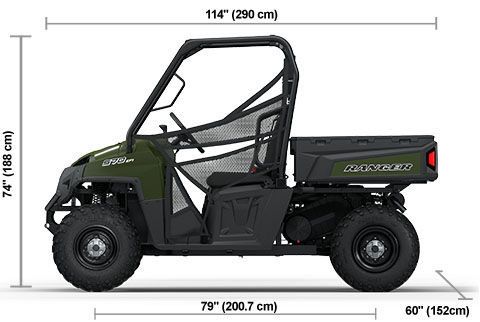

Side view of the Sage Green 2025 Polaris RANGER 570 Full-Size with height, width and length dimensions.
