RANGER CREW XP 1000 NORTHSTAR ULTIMATE SPECIFICATIONS

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Type
4-Stroke Twin Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
82 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,000 lb (453.6 kg)
Estimated Dry Weight
2,371 lb (1,076 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
13 in (33 cm)
Hitch Towing Rating
2,500 lb (1,133.9 kg)

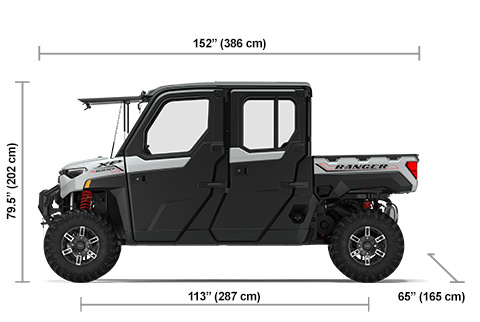

Overall Vehicle Size (L x W x H)
152 x 65 x 79.5 in. (386 x 165 x 202 cm)
Payload Capacity
1,290 lb (585 kg)
Person Capacity
6
Wheelbase
113 in (287 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Specifications

Adjustable Driver Seat
Standard
Cargo System
Lock & Ride
Hitch Type
Standard 2 in (5 cm) Receiver
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center:  User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet
Lighting
Dual LED Headlamps, 1250lm Low Beam, 2300lm High Beam, Dual LED Taillamps
Other Standard Features
Polaris PRO HD 4,500 lb. Winch, Premium Pro-Shield Cab, Doors with Power Windows, Tip-Out Glass Windshield with Wiper, Rear Glass Panel, Dome Light, Rearview Mirror, Heat, AC, Defrost, Premium Embroidered Cut & Sew Seats, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System with 6-Position Underhood Busbar and 6-Position Roof Busbar, Standard In-Dash SAE Charge Port, In Dash Speakers, Front & Rear Cameras, 7" Glove Touch Display: Plow Mode, Group Ride, GPS Naivigation, Bluetooth, AM/FM Radio
Tilt Steering
Standard

Tires / Wheels

Electronic Power Steering
Standard
Front Tires
29 x 9-14; Maxxis MU511
Rear Tires
29 x 11-14; Maxxis MU521
Wheels
14 in Black Aluminum with Machined Accents

Suspension

Front Suspension
Dual A-Arm 10 in. (25.4 cm) Travel
Rear Suspension
Dual A-Arm, IRS 10 in (25.4 cm) Travel
82
Horsepower
11.5
Gallon fuel capacity
2"
Hitch receiver
RANGER CREW XP 1000 NorthStar Ultimate Specs
