RZR Pro S 4 Premium Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
925cc
Drive System Type
Isolated Xtreme Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Twin Cylinder Turbocharged
Fuel System/Battery
Electric Fuel Injection
Horsepower
181 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5 in (66 x 45 x 29.2 cm)
Box Capacity
300 lb (136 kg)
Estimated Dry Weight
2,272 lbs (1,031 kg)
Fuel Capacity
12 gal (45.4 L)
Ground Clearance
16" (40.6 cm)
Hitch Towing Rating
N/A

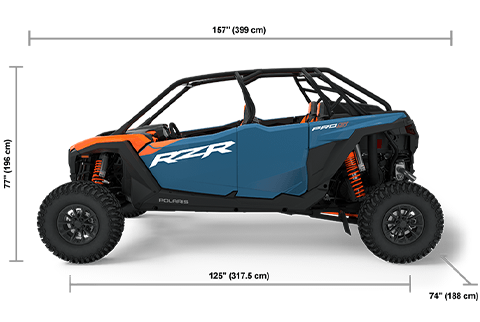

Overall Vehicle Size (L x W x H)
157 x 74 x 77 in (399 x 188 x 196 cm)
Payload Capacity
730 lb (331 kg)
Wheelbase
125 in (317.5 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers; Aluminum Top Hat Rotor
Parking Brake
Park In-Transmission
Specifications
Audio
Not Equipped, Accessory Options Available
Cargo System
Lock & Ride
Charging System
High Output 900w charging system @ 3,000 RPM
Doors
Front & Rear Full Doors
Electronic Power Steering
Rack Mounted High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel; RIDE COMMAND Push Button Controls
Hitch Type
Not Equipped
Instrumentation
RIDE COMMAND® 7” Glove-Touch Display: Built-In GPS, Group ride (cell-based or GPS based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio (Accessory Speakers Required - Sold Separately), In-Vehicle Communications Capable With Optional Sena Headsets, Polaris P.A.S.S Anti-Theft System. Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals. Digital Instrumentation: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
White LED Low/High & Red LED Tail / Brake Lights
Seat Type
Bolstered Bucket Seats with 4-way adjustability (including 6" front to back toolless seat slider with tilt adjustability) and Sub-Zero 4-Point Harnesses
Tires / Wheels
Front Tires
32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7
Rear Tires
32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7
Wheels
15" Cast Aluminum Rim with 5-Lug Pattern
Suspension
Electronic Suspension Control System
Not Equipped
Front Shocks
Walker Evans® 2.5” Velocity Needle Shock with 16-Position Adjustable Clickers
Front Suspension
Light Weight Boxed Dual A-Arm with 3 Piece Stabilizer Bar and 27" (68.6 cm) Usable Travel, 22.25" (56.5 cm) Wheel Travel, Unitized Hubs
Rear Shocks
Walker Evans® 3.0” Velocity Needle Shock with 16-Position Adjustable Clickers
Rear Suspension
Tubular Trailing Arm with Boxed Gusseting and Toe Link, and Stabilizer Bar and 28.3 in (71.9 cm) *Usable Travel, 22.4 in (56.9 cm) Wheel Travel, Unitized Hubs
181
HP
74"
STANCE
28"
TRAVEL
