RZR PRO XP 4 PREMIUM SPECIFICATIONS

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
925cc
Drive System Type
Isolated Xtreme Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Twin Cylinder Turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5 in (66 x 45 x 29.2 cm)
Box Capacity
300 lb (136.1 kg)
Estimated Dry Weight
2,056 lb (933 kg)
Fuel Capacity
13 gal (49.2 L)
Ground Clearance
14.5 in (36.8 cm)
Hitch Towing Rating
N/A

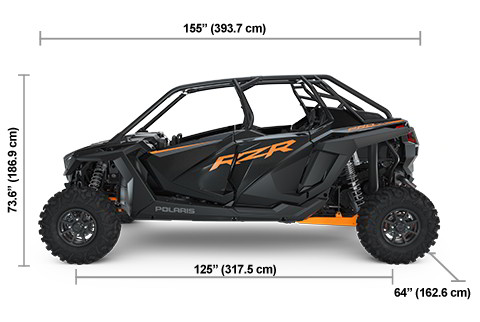

Overall Vehicle Size (L x W x H)
155 x 64 x 73.6 in (393.7 x 162.6 x 186.9 cm)
Payload Capacity
900 lb (408 kg)
Wheelbase
125 in (317.5 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore XL Front and Dual-Bore Rear Calipers
Parking Brake
Park In-Transmission

Specifications

Cargo System
Fold Flat Rear Storage, convertible rear seat storage with integrated tie down points, 27.7 x 52.8 x 19.5 in (70.4 x 134.1 x 49.53 cm)
Doors
Front and Rear 1/2 Door
Electronic Power Steering
High Assist Electronic Power Steering with Quick Turn Rack; Race inspired Steering Wheel with Tilt and Telescoping Adjustment; Ride Command Push Button Controls
Hitch Type
Not Equipped
Instrumentation
RIDE COMMAND® 7 in Glove-Touch Display: Digital Instrumentation, Built-In GPS, Group ride (cell-based or GPS based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In-Vehicle Communications Capable With Optional Sena Headsets, Rockford Fosgate Premium Audio (Including 2 Tweeters, 2 Front & 2 Rear Speakers, and External 400W Amp) Dual-sweep Analog Dials w/ 4 in LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, Front and Rear DC Outlet
Lighting
Signature White LED, Low/High & Red LED Tail / Brake Lights; Front, Rear, and Interior Accent Lighting
Other Standard Features
High Output 900w charging system with sealed electrical, Polaris Pulse system, DC Charging
Seat Type
Front Bolstered Bucket Seats with 4-way adjustability (including 6 in front to back toolless seat sliders with tilt adjustability) and Retractable Click-6 Harnesses, Rear Stadium style seating with Click-6 harnesses

Tires / Wheels

Front Tires
30 x 10-14 Maxxis Carnivore II; (8-ply rated); Wheel Size 14x6
Rear Tires
30 x 10-14 Maxxis Carnivore II; (8-ply rated); Wheel Size 14x7
Wheels
Cast Aluminum

Suspension

Electronic Suspension Control System
N/A
Front Shocks
2 in Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
High-Clearance Dual A-Arm with Stabilizer Bar and 20 in (50.8 cm) Usable Travel*, 17 in (43.2 cm) Wheel Travel
Rear Shocks
2.5 in Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Rear Suspension
Trailing Arm & High-Clearance Radius Rods with Stabilizer Bar and 22 in (55.9 cm) Usable Travel*, 20 in (50.8 cm) Wheel Travel
64"
WIDTH
181
HP
14.5"
CLEARANCE
RZR PRO XP 4 Premium specs
