RZR Pro XP 4 Ultimate Specifications

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
925cc
Drive System Type
Isolated Xtreme Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Twin Cylinder Turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5 in (66 x 45 x 29.2 cm)
Box Capacity
300 lb (136 kg)
Estimated Dry Weight
2,218 lbs (1006 kg)
Fuel Capacity
13 gal (49.2 L)
Ground Clearance
14.5 in (36.8 cm)
Hitch Towing Rating
N/A
Overall Vehicle Size (L x W x H)
155 x 64 x 73.6 in (393.7 x 162.6 x 186.9 cm)
Payload Capacity
900 lb (408.2 kg)
Person Capacity
4
Wheelbase
125 in (317.5 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore XL Front and Dual-Bore Rear Calipers
Parking Brake
Park In-Transmission

Specifications

Audio
Factory Tuned & Integrated Rockford Fosgate Stage 4 Audio System with RIDE COMMAND Source Unit. Includes (2) 100 watt 1-inch tweeters, (2) 100 watt 6.5-inch component front speakers, (2) 100 watt 6.5-inch coaxial rear speakers, (1) 400 watt 4-channel amplifier, and (1) 10-inch subwoofer with an integrated 400 watt subwoofer amplifier. *Audio System is IPX7 and IPX9K water immersion tested to withstand the wet elements.
Cargo System
Lock & Ride® Fold Flat Rear Storage, convertible rear seat storage with integrated tie down points, 27.7 x 52.8 x 19.5 in (70.4 x 134.1 x 49.53 cm)
Charging System
High Output 900w charging system @ 3,000 RPM
Doors
Front & Rear Full Doors
Electronic Power Steering
High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel with Tilt and Telescoping Adjustment; DYNAMIX and RIDE COMMAND Push Button Controls
Hitch Type
Not Equipped
Instrumentation
RIDE COMMAND® 7” Glove-Touch Display: DYNAMIX 2.0 Visualizer, Built-In GPS, Group ride (cell-based or GPS based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio (Accessory Speakers Required - Sold Separately), In-Vehicle Communications Capable With Optional Sena Headsets, Polaris P.A.S.S Anti-Theft System. Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals. Digital Instrumentation: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
Signature Animated RZR Fang Accent Lighting White LED, Low / High & Red LED Tail / Brake Lights; Interior Accent Lighting
Seat Type
Bolstered Bucket Seats with 4-Way Adjustability (Including 6 in Front to Back Toolless Seat Slider with Tilt Adjustability) and Sub-Zero 4 Point Harness

Tires / Wheels

Front Tires
30 x 10-14; 8-Ply Wheel Size 14 x 6
Rear Tires
30 x 10-14; 8-Ply Wheel Size 14 x 7
Wheels
14" Cast Aluminum

Suspension

Electronic Suspension Control System
Polaris DYNAMIX 2.0 Semi-Active Compression Damping Suspension System
Front Shocks
FOX® 2.5 Podium Shocks with Live Valve (Electronically Controlled Damping)
Front Suspension
High-Clearance Dual A-Arm with Stabilizer Bar and 20 in (50.8 cm) *Usable Travel, 17 in (43.2 cm) Wheel Travel
Rear Shocks
FOX® 2.5 Podium Shocks with Live Valve (Electronically Controlled Damping)
Rear Suspension
Trailing Arm & Standard-Clearance Radius Rods with Stabilizer Bar and 22 in (55.9 cm) *Usable Travel, 20 in (50.8 cm) Wheel Travel
181
HP
64"
WIDTH
14.5"
GROUND CLEARANCE

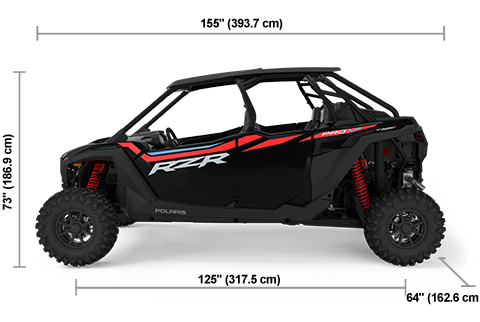

Side view of the Onyx Black 2025 Polaris RZR Pro XP 4 Ultimate with height, width and length dimensions.
