RZR Pro XP Premium Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
925cc
Drive System Type
Isolated Xtreme Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Twin Cylinder Turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
181 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)
26 x 17.7 x 11.5 in (66 x 45 x 29.2 cm)
Box Capacity
300 lb (136 kg)
Estimated Dry Weight
1,834 lbs (832 kg)
Fuel Capacity
12 gal (45.4 L)
Ground Clearance
14.5 in (36.8 cm)
Hitch Towing Rating
N/A

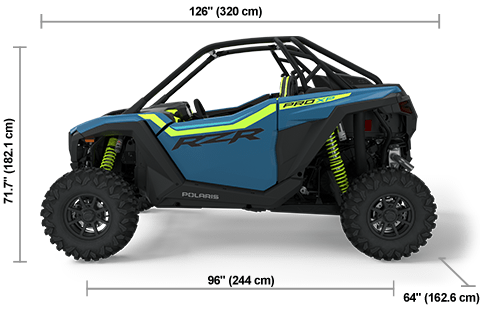

Overall Vehicle Size (L x W x H)
126 x 64 x 71.7 in (320 x 162.6 x 182.1 cm)
Payload Capacity
740 lb (336 kg)
Wheelbase
96 in (244 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers
Parking Brake
Park In-Transmission
Specifications
Audio
Not Equipped, Accessory Options Available
Cargo System
Lock & Ride®
Charging System
High Output 900w charging system @ 3,000 RPM
Doors
Full Doors
Electronic Power Steering
High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel
Hitch Type
Not Equipped
Instrumentation
RIDE COMMAND® 7” Glove-Touch Display: Built-In GPS, Group ride (cell-based or GPS based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio (Accessory Speakers Required - Sold Separately), In-Vehicle Communications Capable With Optional Sena Headsets, Polaris P.A.S.S Anti-Theft System. Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals. Digital Instrumentation: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
White LED, Low/High & Red LED Tail / Brake Lights
Seat Type
Bolstered Bucket Seats with 4-way adjustability (including 6" front to back toolless seat slider with tilt adjustability) and 3-Pt. Heigh Adustable Seatbelts
Tires / Wheels
Front Tires
30 x 10-14; 8-Ply Wheel Size 14 x 6
Rear Tires
30 x 10-14; 8-Ply Wheel Size 14 x 7
Wheels
14" Cast Aluminum
Suspension
Electronic Suspension Control System
Not Equipped
Front Shocks
2 in Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
High-Clearance Dual A-Arm with Stabilizer Bar and 20 in (50.8 cm) *Usable Travel, 17 in (43.2 cm) Wheel Travel
Rear Shocks
2.5 in Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Rear Suspension
Trailing Arm & Standard-Clearance Radius Rods with Stabilizer Bar and 22 in (55.9 cm) *Usable Travel, 20 in (50.8 cm) Wheel Travel
181
HP
64"
WIDTH
14.5"
GROUND CLEARANCE
