RZR TRAIL S 1000 SPECIFICATIONS

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Yes
Engine Type
4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
100 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Box Capacity
300 lb (136 kg)
Estimated Dry Weight
1,323 lb (600 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
12.5 in (31.8 cm)
Hitch Towing Rating
1,500 lb (680 kg)

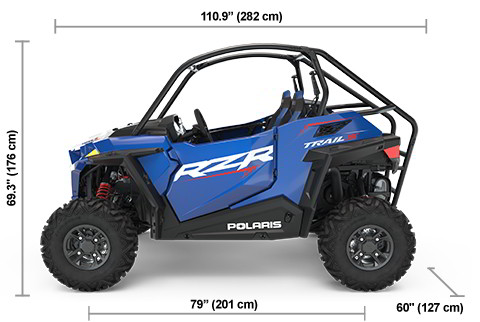

Overall Vehicle Size (L x W x H)
110.9 x 60 x 69.3" (282 x 152.4 x 176 cm)
Payload Capacity
740 lb (336 kg)
Wheelbase
79 in (200.7 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission

Specifications

Cargo System
Lock & Ride
Doors
Full Door
Electronic Power Steering
Yes
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
Front Blacked Out Signature White LED Low/High with Accent Lights & Red LED Tail / Brake Lights
Other Standard Features
Adjustable Tilt Steering
Seat Type
Bolstered Bucket Seats with Toolless Driver Seat Slider and Standard Passenger Seat Slider (Tool Required for Adjustment on Passenger Seat)

Tires / Wheels

Front Tires
27 x 9-12; Trailmaster A/T
Rear Tires
27 x 11-R12; Trailmaster A/T
Wheels
Cast Aluminum

Suspension

Electronic Suspension Control System
N/A
Front Shocks
2 in Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
Dual A-Arm with Stabilizer Bar and 12.25 in (31.1 cm) Wheel Travel
Rear Shocks
2 in Walker Evans Needle Shocks with 16-Position Adjustable Clickers
Rear Suspension
Dual A-Arm with Stabilizer Bar and 13.2 in (33.5 cm) Wheel Travel
Turning Radius
16.36'
100
Horsepower
60''
Vehicle Width
12.5''
Ground Clearance
RZR Trail S 1000 Premium Specifications
