RZR Turbo S Velocity Specifications

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
925cc
Drive System Type
Isolated Xtreme Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Twin Cylinder Turbocharged
Fuel System/Battery
Electronic Fuel Injection
Horsepower
168 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lb (136.1 kg)
Estimated Dry Weight
1,725 lb (782 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
16" (40.6 cm)
Hitch Towing Rating
N/A

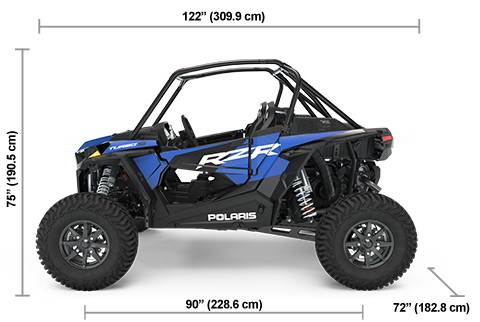

Overall Vehicle Size (L x W x H)
122 x 72 x 75 in (302.2 x 182.8 x 187.3 cm)
Payload Capacity
740 lb (336 kg)
Wheelbase
90 in ( 228.6 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers
Parking Brake
Park In-Transmission

Specifications

Cargo System
Lock & Ride
Doors
Bowed 1/4 Doors
Electronic Power Steering
Xtreme Performance with Quick Turn Rack
Hitch Type
Not Equipped
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
Signature Blacked Out White LED Low/High & Red LED Tail / Brake Lights
Other Standard Features
N/A
Seat Type
Bolstered Bucket Seats with Seat Slider and SubZero 4-point harness

Tires / Wheels

Front Tires
32 x 10-15; ITP COYOTE (8-Ply Rated)
Rear Tires
32 x 10-15; ITP COYOTE (8-Ply Rated)
Wheels
Cast Aluminum

Suspension

Electronic Suspension Control System
Not Equipped
Front Shocks
Walker Evans® 2.5” Velocity Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
Dual A-Arm with Stabilizer Bar and 25 in (63.5 cm) Usable Travel*, 19 in (48.2 cm) of Wheel Travel
Rear Shocks
Walker Evans® 3.0” Velocity Needle Shock with 16-Position Adjustable Clickers
Rear Suspension
Trailing Arm with Stabilizer Bar and 25 in (63.5 cm) Usable Travel*, 21 in (53.3 cm) of Wheel Travel
168
Horsepower
64"
Vehicle Width
14"
Ground Clearance
