Sportsman Touring 570 EPS Specifications
Engine & Drivetrain
Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
One Touch On-Demand AWD/2WD
Electronic Power Steering
Multi Select EPS
Engine Braking System (EBS)
Not Equipped
Engine Type
ProStar 4-Stroke DOHC Single Cylinder
Fuel System/Battery
Electronic Fuel Injection / 340 CCA
Horsepower
44 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting
Dimensions
Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
795 lbs (361 kg)
Front/Rear Rack
90 lb/180 lb (40.8 kg/82 kg)
Fuel Capacity
6.75 gal (25.5 L)
Ground Clearance
11.5 in (29 cm)
Hitch Tow Rating
1,350 lb (612 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver

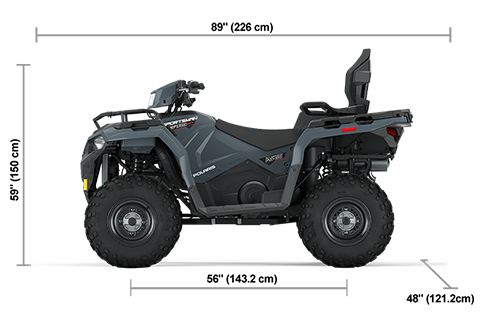

Overall Vehicle Size (L x W x H)
89 x 48 x 59 in (226 x 121.2 x 150 cm)
Payload Capacity
485 lb (220 kg)
Person Capacity
2
Seat Height
35.25 (89.5 cm)
Wheelbase
56 in (143.2 cm)
Brakes
Front/Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever
Specifications
Cargo system
Lock & Ride Compatible 5 Gal (18.9L) Front Dry Storage, 6 Gal (23 L) Rear Storage, Toolless Removable Passenger Seat
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Lighting
50w High Beam, Dual 50w Low Beam Headlights, Dual Brake Lights/Tail Lights
Other Standard Features
Front Rack Extender, Front A-Arm Guards
RIDE COMMAND+
Available as Accessory
Tires / Wheels
Front Tires
25x8-12 P373; 6 PLY
Rear Tires
25 x 10-12 P373; 6 PLY
Wheels
12 in. (30.5 cm) Steel
Suspension
Front Suspension
Sealed MacPherson Strut With 8.2 in (20.8 cm) Travel
Rear Suspension
Sealed Dual A-Arm, IRS 9.5 in (24.1 cm) Travel
44
HP
48"
WIDTH
11.5"
GROUND CLEARANCE
