RANGER CREW SP 570 Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
567 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Engine Type
4-stroke single cylinder DOHC
Fuel System/Battery
Electronic fuel injection
Horsepower
44
Transmission/Final Drive
Automatic PVT H/L/N/R/P; shaft
Dimensions
Bed Box Dimensions (L x W x H)
33.3 x 48.7 x 12.3" (84.6 x 123.7 x 31.2 cm)
Box Capacity
500 lbs. (226.8 kg)
Estimated Dry Weight
1,438 lbs.
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
11" (27.9 cm)
Hitch Type
Standard 2" (5 cm) receiver

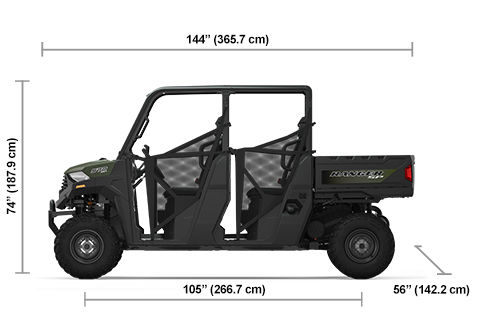

Overall Vehicle Size (L x W x H)
144 x 56 x 74" (365.8 x 142.2 x 188 cm)
Payload Capacity
1,200 lbs. (544 kg)
Person Capacity
4
Towing Capacity
1,500 lbs. (680 kg)
Turning Radius
16.3 ft (5.0 m)
Wheelbase
105" (266.7 cm)
Brakes
Front/Rear Brakes
4-wheel hydraulic disc
Parking Brake
Park in-transmission
Technology
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Touch Screen Display
Not equipped, accessory options available
Wheels & Tires
Front Tires
25 x 8-12; Carlstar 489
Rear Tires
25 x 10-12; Carlstar 489
Wheels
12" stamped steel
Suspension
Front Suspension
MacPherson strut 9" (22.9 cm) travel
Rear Suspension
Dual A-arm, IRS 10" (25.4 cm) travel
Exterior Features
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Cab nets
Vehicle Protection
Steel front bumper with integrated winch mount
Winch
Not equipped, accessory options available
Lighting & Electrical
Electrical System
DC outlet, standard in-dash SAE charge port, 660-W stator charging system
Lighting
Halogen headlights
Comfort & Convenience
Driver Instrumentation
4" LCD rider information center: user-selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
Not equipped
Seat Type
4-person, dual-row, flip-up bench seats with 3-point harness.
Speed Limiting
Not equipped, accessory options available
Steering
Tilt adjustment
44
HP
56"
WIDTH
11"
GROUND CLEARANCE
