Key Features
Mission Ready
Ultimate mission capability with integrated tie-down points to carry what you need and a 3,000 lb winch to maneuver challenging terrain.

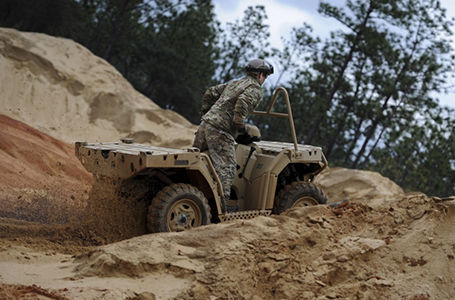

Hard Working
With a proven and powerful 77 HP engine, the MV850 is engineered to carry up to 850 lb of military-grade payload and tow up to 1,500 lb through some of the most extreme off-road conditions.
Suspension and AWD
Delivering true on-demand AWD, electronic power steering, and Dual A-arm suspension with heavy duty shocks to accommodate all your military-grade payload on any harsh terrain.
Versatile
The Sportsman MV850 is ready for anything with the extreme versatility of keyless ignition, optional litter mount, and blackout drive with IR capability.
Rugged Racks and Bumper
Carry up to 200 lb of gear on the front rack and up to 400 lb of gear on the back. A full underbody skid plate and front bumper add durability on harsh terrain.
Active Descent Control
Descend confidently with the ADC system that allows engine braking to all four wheels of the ATV while on hills or inclines.
-
Person Capacity
1
-
Payload Capacity (lb)
850
-
Towing Capacity (lb)
1,500

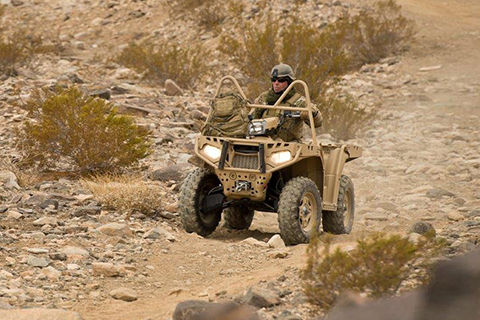

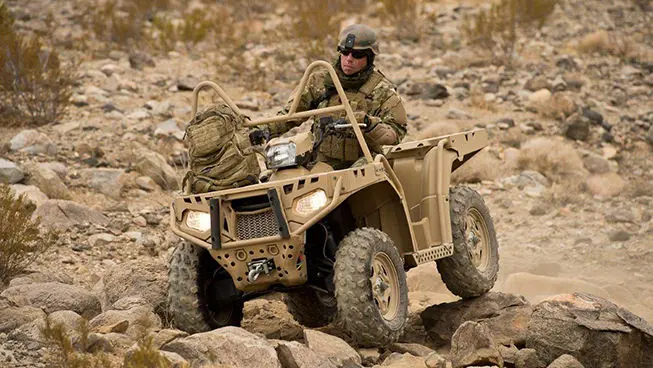

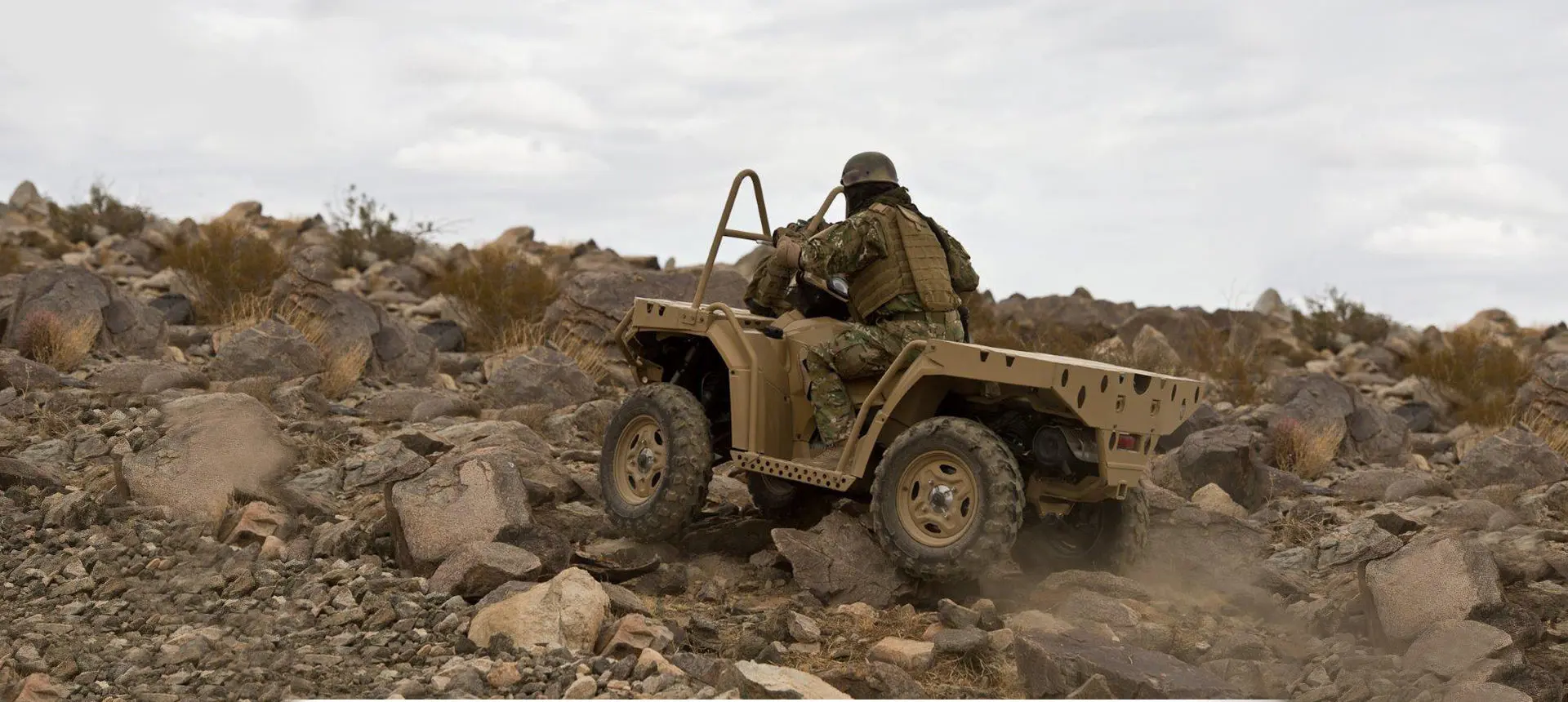

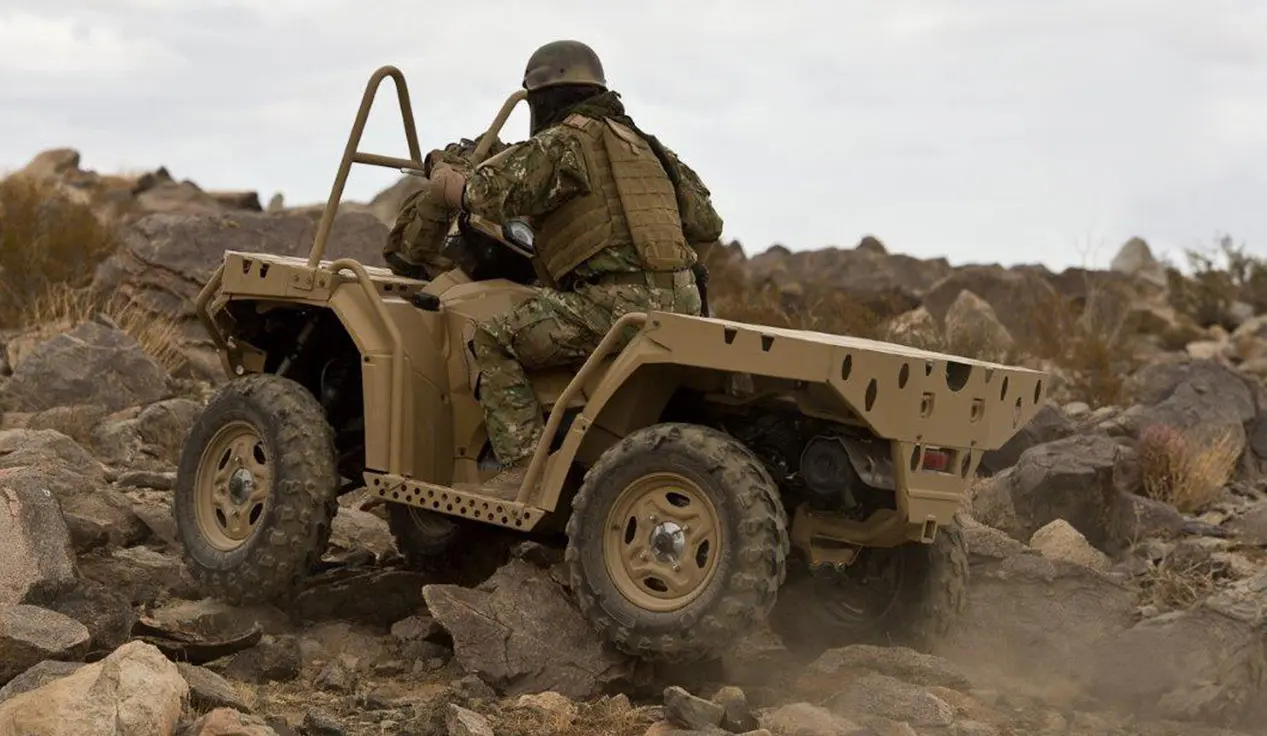

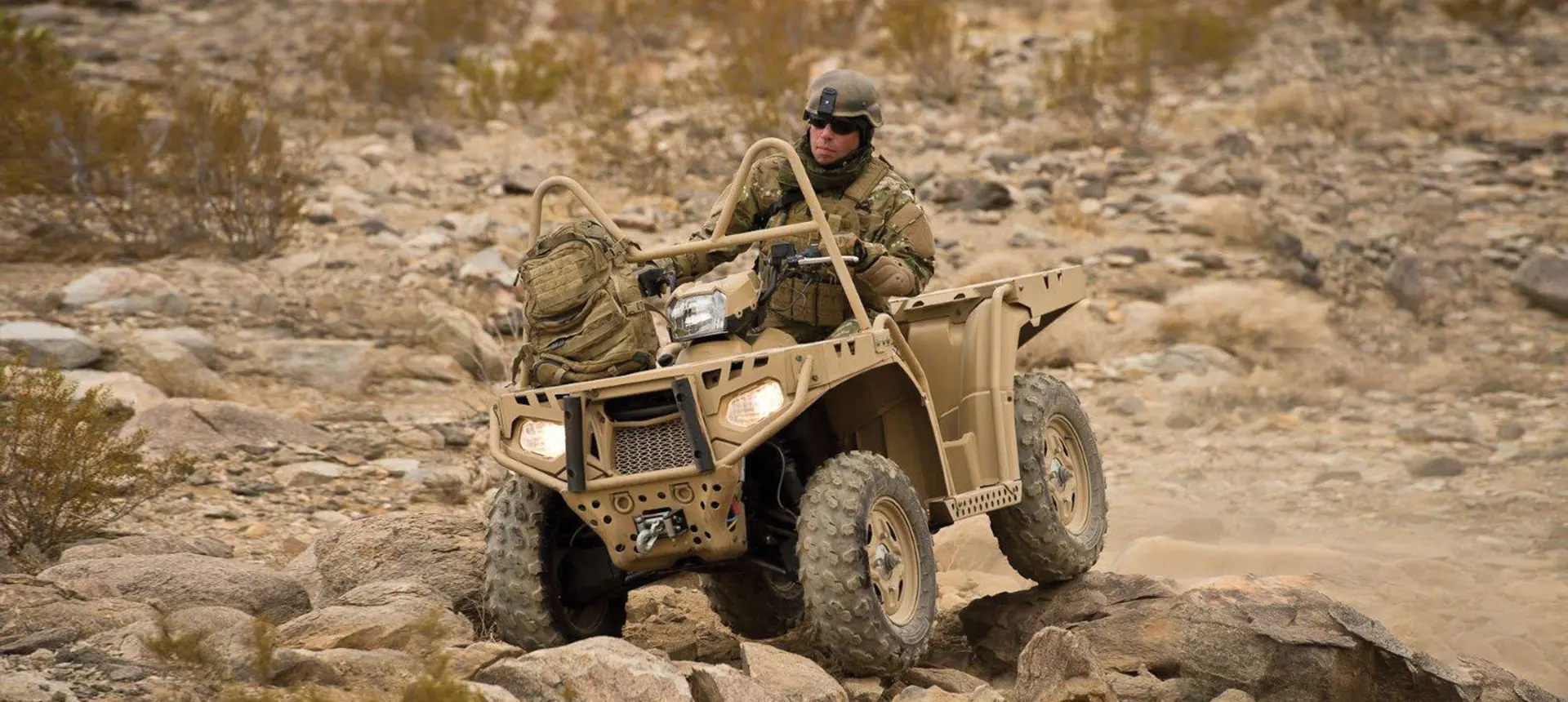

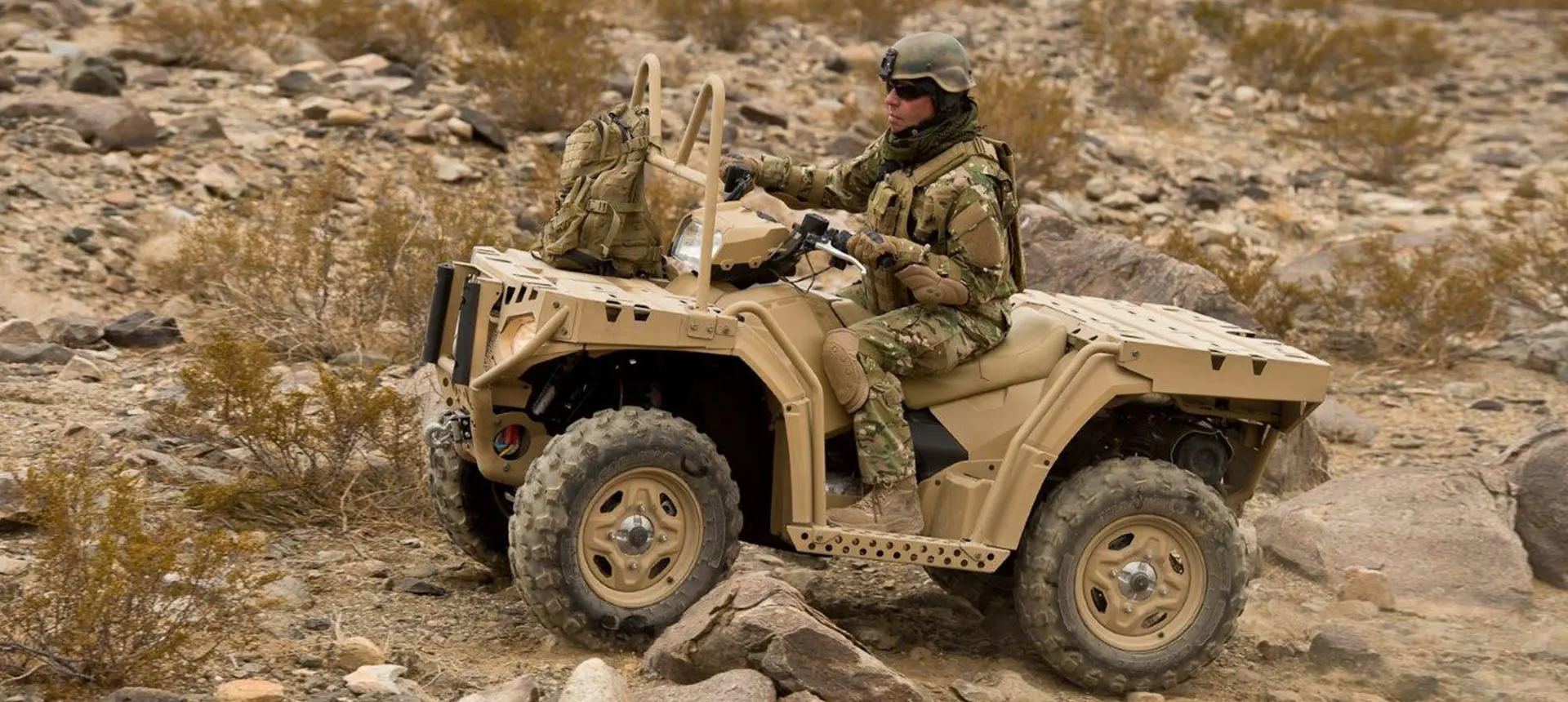

Sportsman MV850
Includes:
- 4-Stroke SOHC Twin Cylinder
- 850 cc
- On-demand True All Wheel Drive (AWD)
- Electronic Fuel Injection
Accessories

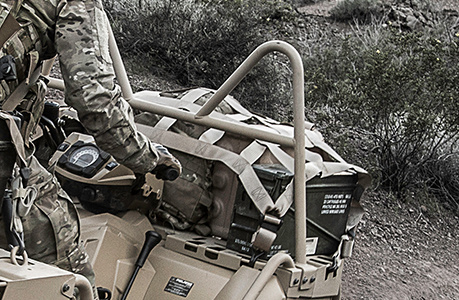

Cargo Nets
Secure loads quickly and effectively with durable cargo nets from Bednet®. Constructed of polyester seat belt webbing, coated steel hooks and nylon buckles, these nets are easy to use with four adjustable straps integrated into the net.
Fender Bag
This fender bag is made up of 6000 UV Coated poly with a water resistant backer, perfect for storing the standard MV850 set of tools or protecting other items from the elements.

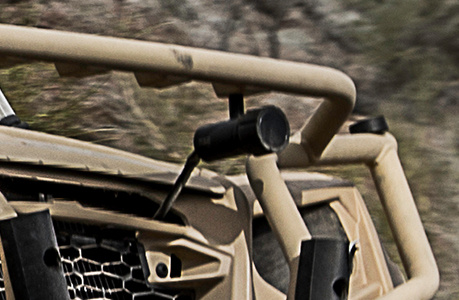

IR Light
Adventure Lights stealth illuminator IR light is compact, robust, flexible and waterproof.
-

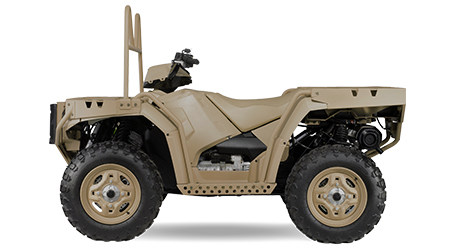

Specifications
Engine & Drivetrain
|
<span></span>
Engine Type |
<span></span>
4-Stroke SOHC Twin Cylinder |
|
<span></span>
Fuel System/Battery |
<span></span>
Electronic Fuel Injection |
|
<span></span>
Fuel Type |
<span></span>
Gas |
|
<span></span>
Active Descent Control |
<span></span>
Yes |
|
<span></span>
Drive System Type |
<span></span>
On-Demand True AWD/2WD |
|
<span></span>
Cooling |
<span></span>
Liquid |
|
<span></span>
Transmission/ Final Drive |
<span></span>
Automatic PVT P/R/N/H; Shaft |
Dimensions
|
<span></span>
Box Capacity |
<span></span>
600 lb |
|
<span></span>
Curb Weight |
<span></span>
978 lb |
|
<span></span>
Fuel Capacity |
<span></span>
5.25 gal (19.9 L) + 6.6 gal (24.6 L) reserve |
|
<span></span>
Payload Capacity |
<span></span>
850 lb |
|
<span></span>
Person Capacity |
<span></span>
1 |
|
<span></span>
Wheelbase |
<span></span>
57 in |
|
<span></span>
Overall Vehicle Size (LxWxH) |
<span></span>
94.5 x 47.3 x 60 in (243.3 x 120.1 x 152.4 cm) |
