RZR XP 1000 Ultimate Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance True On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
114 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lb (136 kg)
Estimated Dry Weight
1,642 lbs (744.8 kg)
Fuel Capacity
9.5 gal (36 L)
Ground Clearance
14.5 in (36.8 cm)
Hitch Towing Rating
N/A

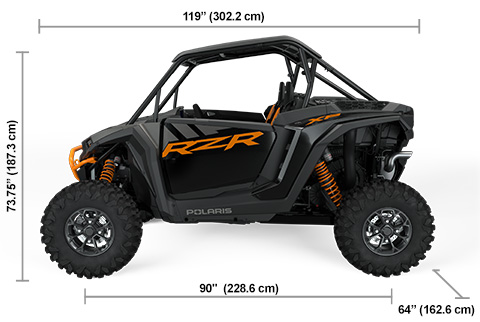

Overall Vehicle Size (L x W x H)
120 x 64 x 74 in (304.8 x 162.6 x 188 cm)
Payload Capacity
740 lb (336 kg)
Wheelbase
90 in ( 228.6 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Single Bore Rear Calipers
Parking Brake
Park In-Transmission
Specifications
Cargo System
Lock & Ride®
Doors
Full Doors
Electronic Power Steering
Standard with Quick Turn Rack
Hitch Type
Not Equipped
Instrumentation
7” Glove-Touch Display: Digital Instrumentation, Built-In GPS, Group ride (cell-based or GPS based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Indicator, Clock, Gear Indicator, Fuel Gauge, Hi-Temp Light, Seatbelt Reminder Light, Fault Code Display, DC Outlet, Ambient Temp, Rockford Fosgate® Stage 3 Audio (Including 2 Front & 2 Rear Co-axial Speakers and External 400W Amp)
Lighting
LED Head Lights & Tail Lights, Front & Rear LED Accent Lights, Illuminated In-Cab Controls
Other Standard Features
Color Matched Seats, Premium Paint & Graphics, Color-Matched Dash & Bumper, 900-W Charging System, 6-Position Pulse Bar, Tilt Steering, Poly Sport Roof, Rockford Fosgate® Stage 3 Audio, RIDE COMMAND, Rear Camera, Accent Lighting, Adjustable 4-Point Subzero Harnesses, Front Tow Loop, Front Bumper
RIDE COMMAND+
Available
Seat Type
Bolstered Bucket Seats with Driver Seat Slider and Adjustable 4-Point Subzero Harnesses
Tires / Wheels
Front Tires
Trail Master X/T 2.0, 30 x 10-14 Radial Tire
Rear Tires
Trail Master X/T 2.0, 30 x 10-14 Radial Tire
Wheels
Cast Aluminum
Suspension
Electronic Suspension Control System
Not Equipped
Front Shocks
2" Walker Evans® Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
Dual A-Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 16 in (40.6 cm) of Wheel Travel
Rear Shocks
2.5" Walker Evans® Needle Shocks with 16-Position Adjustable Clickers
Rear Suspension
Trailing Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 18 in (45.7 cm) of Wheel Travel
114
HP
64"
WIDTH
14.5"
GROUND CLEARANCE
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.
