Sportsman 570 EPS Specifications
Engine & Drivetrain
Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
One Touch On-Demand AWD/2WD
Engine Braking System (EBS)
Equipped
Engine Type
ProStar 4-Stroke DOHC Single Cylinder
Fuel System/Battery
Electronic Fuel Injection / 340 CCA
Horsepower
44 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting
Dimensions
Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
760 lb (345 kg)
Front/Rear Rack
90 lb /180 lb (40.8 kg /81.6 kg)
Fuel Capacity
4.5 gal (17.0 L)
Ground Clearance
11.5 in (29 cm)

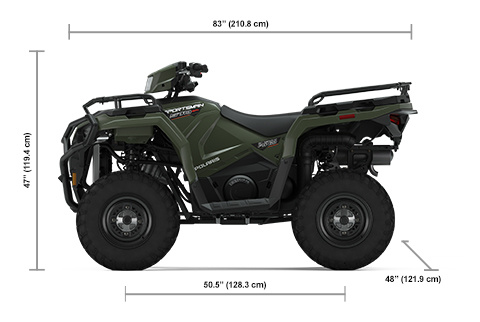

Overall Vehicle Size (L x W x H)
86 x 48 x 48 in (218.4 x 121.9 x 121.9 cm)
Payload Capacity
485 lb (220 kg)
Person Capacity
1
Seat Height
33.25 in (84.5 cm)
Wheelbase
50.5 in (128.3 cm)
Brakes
Front/Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever
Specifications
Cargo System
Lock & Ride Compatible 5 Gal (18.9L) Front Dry Storage
Front Suspension
Sealed MacPherson Strut With 8.2 in (20.8 cm) Travel
Hitch Towing Rating
1,350 lb (612 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light
Lighting
Halogen Pod & Bumper Lights, Triple 50w High Beams, Dual 50w Low Beams, Twin LED Brake Lights/Taillights
Other Standard Features
Front Trail Bumper, Front Rack Extender, Rear Rack Extender, 12 Volt Power Plug, Pre-Wired for Hand & Thumb Warmers, In Pod Battery Charger, Winch Mount Included, Front A-Arm Guards
Rear Suspension
Sealed Dual A-Arm, IRS 9.5 in (24.1 cm) Travel
RIDE COMMAND+
Available
Tires / Wheels
Electronic Power Steering
Multi Select EPS
Front Tires
25x8-12 P373; 6 PLY
Rear Tires
25x10-12 P373; 6 PLY
Wheels
12 in. (30.5 cm) Steel
