Sportsman 6X6 570 Specifications
Engine & Drivetrain
Active Descent Control
Equipped
Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
One Touch On-Demand AWD/4WD
Electronic Power Steering
Multi Select EPS
Engine Braking System (EBS)
Equipped
Engine Type
ProStar 4-Stroke DOHC Single Cylinder
Fuel System/Battery
Electronic Fuel Injection / 340 CCA
Horsepower
44 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting
Dimensions
Bed Box Dimensions (L x W x H)
38 x 39 x 8 in (96.5 x 99.1 x 20.3 cm)
Estimated Dry Weight
1187 lbs (538 kg)
Front/Rear Rack
90 lb /800 lb (40.8 kg / 362.8 kg)
Fuel Capacity
6.75 gal (25.5 L)
Ground Clearance
11.5 in (29 cm)
Hitch Tow Rating
1,500 lb (680 kg)
Hitch Type
Standard 2 in (5.08 cm) Receiver

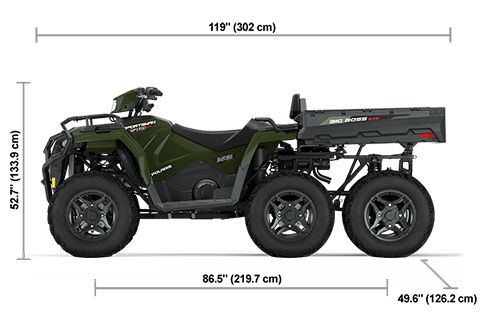

Overall Vehicle Size (L x W x H)
119 x 49.6 x 52.7 in (302 x 126.2 x 133.9 cm)
Payload Capacity
1,115 lb (507 kg)
Person Capacity
2
Seat Height
36 in (91.4 cm)
Wheelbase
86.5 in (219.7 cm)
Brakes
Front/Rear Brakes
Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever
Specifications
Cargo system
5 Gal (18.9 L) Front Dry Storage, Lock & Ride Dump Box Rails & Rear Racks, D-rings in Dump Box
Instrumentation
All Digital Gauge, Geofencing, Speed Limiter, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light
Lighting
LED POD High Beam, LED Low Beam Headlights, Dual LED Brake Lights/Tail Lights
Other Standard Features
Front and Rear A-Arm Guards, Front Trail Bumper, 3,500 lb Polaris HD Winch, Front Rack Extender, Bed Box, Ride Control (Easy Effort Throttle, Speed Limiting, Geofencing, PIN Activated Security System), Drive Modes
RIDE COMMAND+
N/A
Tires / Wheels
Front Tires
26 x 8-14; CST
Rear Tires
26 x 10-14; CST
Wheels
14 in. (35.6 cm) Aluminum
Suspension
Front Suspension
Sealed Arched Dual A-Arm with 8.9 in (22.6 cm) Travel
Rear Suspension
Sealed Dual A-Arm, IRS 6.3 in (16 cm) Travel
44
HP
48"
WIDTH
11.5"
GROUND CLEARANCE
