SPORTSMAN MV850 Specifications
Engine & Drivetrain
Drive System Type
On-Demand True AWD/2WD
Engine Braking System (EBS)
Standard
Engine Displacement
850cc
Engine Type
Twin Cylinder, Gas
Fuel System
EFI
Fuel Type
Gasoline, 87 Octane Minimum
Horsepower
77 HP
Torque
57 ft lb
Transmission
Automatic PVT P/R/N/F
Dimensions
Curb Weight
1156 lb
Front Rack Dimensions (L x W)
21.9 x 46.5 in
Front Rack Load Capacity
200 lb
Fuel Capacity
11.75 gal (44.5 L) 5.25 gal (19.9 L) + 6.5 gal (24.6 L) reserve
Fuel Range (GVW) (30 mph, flat, paved surface)
224 miles
Ground Clearance
11.25 in
GVW
2018 lb
Hitch Type
2 inch Receiver, Front and Rear

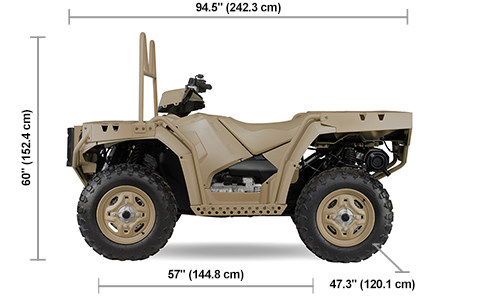

Overall Vehicle Size (L x W x H)
94.5 x 47.3 x 60 in
Payload Capacity
850 lb
Person Capacity
1
Rear Bed Dimensions (L x W)
25.5 x 47.0 in
Rear Bed Load Capacity
400 lb
Rear Hitch Towing Rating
1500 lb
Water Fording at 5 mph
24 in
Wheelbase
57 in
Winch
2500 lb Fixed Front Mount
Brakes
Front/Rear Brakes
Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park in Transmission, Lockable Shift Lever
Specifications
Brakelights
Halogen
Headlight
LED, HI and LO Beam
IEEE American Plug (Cigarette Lighter)
1
Instrumentation
Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi Temp/Low Batt Indication
IR-Follow Me
NO
IR-Front
Optional
IR-Rear Brake
NO
Lighting Blackout
YES
USB Ports
Not Equipped
Tires / Wheels
Front Tires
26x8R14
Power Steering
Electric
Rear Tires
26x8R14
Rims
14" Stamped Steel
Suspension
Front Suspension
Dual A-Arm 9" (22.9 cm) Travel
Rear Suspension
Dual A-Arm, Rolled 10.25" (26 cm) Travel
Features
Air Drop
YES
Internal Aircraft Transportable
YES
Sling Loadable
Not Equipped
1
PERSON CAPACITY
850
PAYLOAD CAPACITY (LB)
1,500
TOWING CAPACITY (LB)
