GENERAL XP 1000 Sport Specifications

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
True On-Demand AWD/2WD/ VersaTracTurf Mode
Engine Braking System (EBS)
EDA: Engine Deceleration Assist
Engine Type
4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
100 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H

Dimensions

Bed Box Dimensions (L x W x H)
27.5 x 43.1 x 11.6 in (69.8 x 109 x 29.5 cm)
Box Capacity
600 lb (272 kg) Rear Dumping Box
Estimated Dry Weight
1654 lbs. (750 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
13.5 in (34.3 cm)
Hitch Towing Rating
1500 lb (680 kg)
Overall Vehicle Size (L x W x H)
118.2 x 64 x 77 in (300 x 162.5 x 195.5 cm)
Payload Capacity
1100 lb (499 kg)
Person Capacity
2
Wheelbase
83 in (211 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission

Specifications

Audio
Not Equipped, Accessory Options Available
Cargo System
Lock & Ride®
Doors
Full Doors Standard
Electronic Power Steering
High Output EPS
Hitch Type
Standard 2 in (5.08 cm) Receiver
Instrumentation
Dual-Sweep Analog Dials with 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting
LED Headlight with Accent & LED Taillights
Other Standard Features
POLARIS HD 4500 LB Winch with Synthetic Rope, Aluminum Fairlead & Rubber Isolator, Sport Low Profile Front Bumper, ProFit Sport Roof
Seat Type
Bolstered Bucket Seats with Driver Seat Slider and Height Adjustable Seat Belts

Tires / Wheels

Front Tires
30 x 10-15; Pro Armor Crawler XGF
Rear Tires
30 x 10-15; Pro Armor Crawler XG
Wheels
15 in Aluminum

Suspension

Electronic Suspension Control System
Not Equipped
Front Shocks
Walker Evans Velocity Series Shocks
Front Suspension
Long Travel, High Clearance Dual A-Arm with Stabilizer Bar, 14 in (35.6 cm) Travel
Rear Shocks
Walker Evans Velocity Series Shocks
Rear Suspension
Long Travel, High Clearance Dual Arm IRS with Stabilizer Bar, 14 in (35.6 cm) Travel
100
HP
64"
WIDTH
13.5"
GROUND CLEARANCE

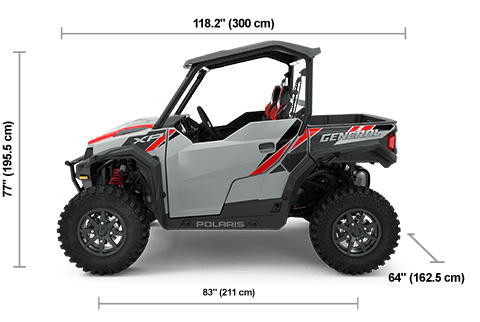

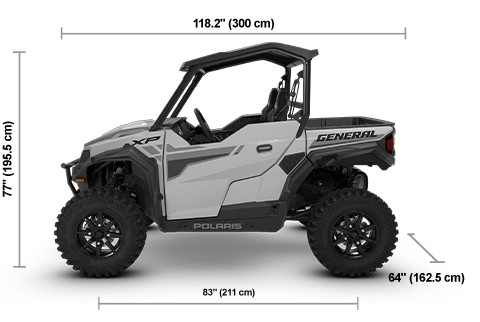

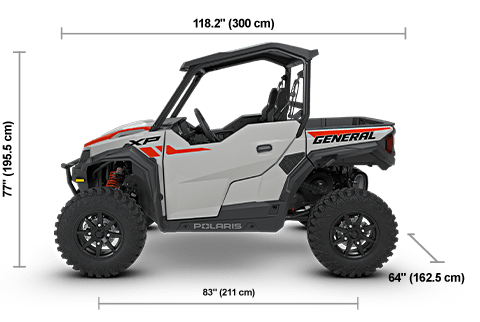

Side view of the Ghost Gray 2025 Polaris GENERAL XP 1000 Sport with height, width and length dimensions.
