MRZR D2 Specifications
Engine & Drivetrain
Drive System Type
On-Demand True AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Displacement
1.0L
Engine Type
Three Cylinder, Turbo Diesel
Fuel System
Mechanical Injection
Fuel Type
Diesel: D1, D2, JP5, JP8, F24, ULSD
Horsepower
55 hp
Torque
69 ft lb
Transmission
Automatic PVT P/R/N/H/L
Dimensions
Curb Weight
1887 lb
Front Rack Dimensions (L x W)
Not Equipped
Front Rack Load Capacity
Not Equipped
Fuel Capacity
9.5 gal
Fuel Range (GVW) (30 mph, flat, paved surface)
200 miles
Ground Clearance
12.5 in.
GVW
2887 lb
Hitch Type
2 inch Receiver, Front and Rear

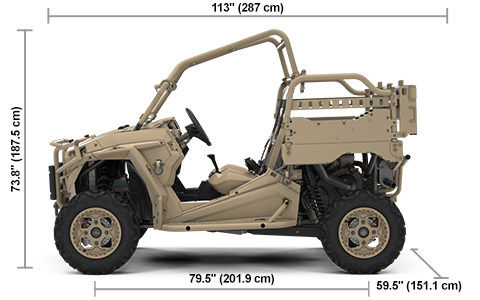

Overall Vehicle Size (L x W x H)
112.9 x 59.5 x 72.5 in
Payload Capacity
1000 lb
Person Capacity
2
Rear Bed Dimensions (L x W)
32.3 x 49 in
Rear Bed Load Capacity
500 lb
Rear Hitch Towing Rating
1500 lb
Water Fording at 5 mph
24 in
Wheelbase
79.3 in
Winch
4500 lb Fixed Front Mount
Brakes
Front/Rear Brakes
4 Wheel Hydraulic Disc with Dual Bore Front and Single Bore Rear Calipers
Parking Brake
Park In-Transmission
Specifications
Brakelights
LED
Headlight
LED, HI and LO Beam
IEEE American Plug (Cigarette Lighter)
2
Instrumentation
Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi Temp/Low Batt Indication
IR-Follow Me
NO
IR-Front
1 STD, 2 Optional
IR-Rear Brake
NO
Lighting Blackout
YES
USB Ports
Not Equipped
Tires / Wheels
Front Tires
26 x 9 - 14
Power Steering
Electric
Rear Tires
26 x 9 - 14
Rims
14" Aluminum Beadlock
Suspension
Front Suspension
Dual A-Arm 12 in. (30.5 cm) Travel
Rear Suspension
Trailing Arm 12 in (30.5 cm) Travel
Features
Air Drop
YES
Internal Aircraft Transportable
YES
Sling Loadable
Not Equipped
2
PERSON CAPACITY
1
LITTER CAPACITY
DIESEL
FUEL TYPE
