Polaris XPEDITION ADV 5 NorthStar Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
On-demand true AWD/2WD/VersaTrac Turf Mode
Driveline Features
N/A
Engine Type
ProStar 1000 4-stroke DOHC twin cylinder.
Fuel System/Battery
Electronic Fuel Injection
Horsepower
114
Transmission/Final Drive
NUMATIX Controlled CVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)
36.2 x 47.25 x 13.38" (92 x 120 x 34 cm)
Box Capacity
600 lbs. (272 kg) Bed
Curb Weight
2,942 lbs. (1,334 kg) CA 2,953 lbs. (1,339 kg)
Estimated Dry Weight
2,816 lbs. (1,277 kg) CA 2,827 lbs. (1,282 kg)
Fuel Capacity
12.5 gal (47.3 L)
Ground Clearance
14" (35.6 cm)
Hitch Type
Standard / 2" receiver

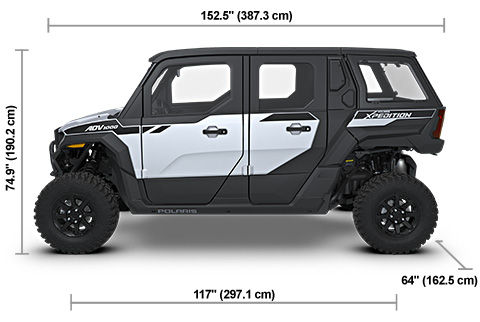

Overall Vehicle Size (L x W x H)
152.5 x 64 x 74.9"
Payload Capacity
1,100 lbs. (499 kg)
Person Capacity
5
Towing Capacity
2,000 lbs. (907 kg)
Turning Radius
20.4' (6.2m)
Wheelbase
117"
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Technology
Audio System
JBL® Trail Pro 4100. 400-W 10" subwoofer, (2) 45W 6" stadium speakers, 200-W amp
Connected Vehicle Services
RIDE COMMAND+ connected vehicle services including real time vehicle location, vehicle security alerts, remote ignition lockout, vehicle health diagnostics, and maintenance reminders. Free three-year subscription of RIDE COMMAND+ included with purchase of vehicle when factory installed.
Rear Camera
Standard
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
7" Display powered by RIDE COMMAND, featuring built‑in GPS navigation with topographic mapping, Group Ride (cell‑based or GPS‑based) with messaging, ride tracking, configurable gauges, waypoints, help alerts, Bluetooth® audio, AM/FM radio, and USB smartphone connectivity.
Wheels & Tires
Front Tires
30 x 10-15; Pro Armor Trekker
Rear Tires
30 x 10-15; Pro Armor Trekker
Tire Ply Rating
8-ply front and rear
Wheels
15" Cast Aluminum
Suspension
Electronic Suspension Control System
Not Equipped
Front Shocks
FOX 2.0 Podium QS3 with position-sensitive spiral technology
Front Suspension
Long Travel, High Clearance Dual A-Arm with Stabilizer Bar, 14" (35.6 cm) Travel
Rear Shocks
FOX 2.5 Podium QS3 with position-sensitive spiral technology
Rear Suspension
Long-travel, high-clearance dual A-arm with stabilizer bar, 15" (38.1) travel
Exterior Features
Cargo System
Lock & Ride MAX, equipped with onboard air to support air-powered accessories
Door Type
Full power-window doors standard
Vehicle Protection
Front bull bumper, full-coverage skid plate
Winch
POLARIS HD 4500 LB Winch w/ Rope, Rubber stopper and Aluminum Fairlead, Auto Stop & Plow Mode
Lighting & Electrical
Electrical System
140a alternator charging system
Lighting
LED headlight with accent and LED taillights
Comfort & Convenience
Cab Components
Enclosed cab, ProFit sport roof, convex rearview mirror
Driver Instrumentation
Driver forward information center with 4" color display, rotary speedometer and tachometers, and center dash
Electronic Power Steering
High-output EPS
Heat and/or Air Conditioning
Heat and air conditioning with temperature and zone control
Ride Control
Not equipped
Seat Type
Front: bolstered bucket seats with driver and passenger seat slider, Rear: bolstered 60/40 flip-up bench seat and fold-down seat back.
Speed Limiting
Not equipped
Steering
Tilt & telescoping
