RANGER SP 570 NorthStar Edition Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
567 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Engine Type
4-stroke single cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
44
Transmission/Final Drive
Automatic PVT H/L/N/R/P; shaft
Dimensions
Bed Box Dimensions (L x W x H)
33.3 x 48.7 x 12.3" (84.6 x 123.7 x 31.2 cm)
Box Capacity
500 lbs. (226.8 kg)
Estimated Dry Weight
1,515 lbs.
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
11" (27.9 cm)
Hitch Type
Standard 2" (5 cm) receiver

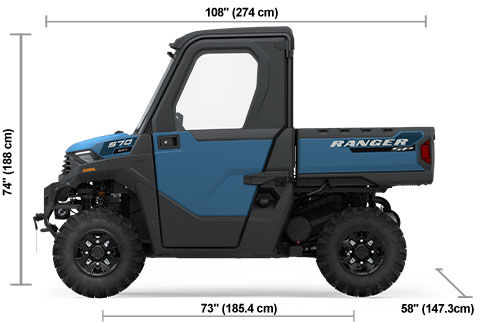

Overall Vehicle Size (L x W x H)
108 x 58 x 74" (274.3 x 147.3 x 188 cm)
Payload Capacity
675 lbs. (306 kg)
Person Capacity
2
Towing Capacity
1,500 lbs. (680 kg)
Turning Radius
12.6 ft (3.9 m)
Wheelbase
73" (185.4 cm)
Brakes
Front/Rear Brakes
4-wheel hydraulic disc
Parking Brake
Park in-transmission
Technology
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Touch Screen Display
Not equipped, accessory options available
Wheels & Tires
Front Tires
25 x 8-12; Pro Armor X Terrain
Rear Tires
25 x 10-12; Pro Armor X Terrain
Tire Ply Rating
8-ply
Wheels
12" aluminum
Suspension
Front Suspension
MacPherson strut 9" (22.9 cm) travel
Rear Suspension
Dual A-arm, IRS 10" (25.4 cm) travel
Exterior Features
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Manual crank window doors
Vehicle Protection
Full-coverage steel front bumper with integrated winch and plow mounts
Winch
3,500-lbs. Winch with synthetic rope and Auto Stop
Lighting & Electrical
Electrical System
DC outlet, standard in-dash SAE charge port, USB charging port, 660-W stator charging system, Polaris PULSE electrical system (3-position)
Lighting
LED headlights
Comfort & Convenience
Cab Components
Factory-installed cab system with crank window doors, roof, fixed glass windshield, glass rear panel, windshield wiper/washer, and sound insulation materials
Driver Instrumentation
4" LCD rider information center: user-selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Electronic Power Steering
High-output EPS
Heat and/or Air Conditioning
Factory-installed heat and defrost
Seat Type
2-person, flip-up bench seat with 3-point harness.
Speed Limiting
Not equipped, accessory options available
Steering
Tilt adjustment
44
HP
58"
WIDTH
11"
GROUND CLEARANCE
