RANGER XD 1500 NorthStar Mountaineer Edition Treeline Green Metallic Specifications

Change Model

Engine & Drivetrain

Cooling

Liquid

Cylinders Displacement

1498 cc

Drive System Type

Selectable on-demand all-wheel drive, AWD/2WD/Turf/Ultra Turf, Drive modes: Comfort, Standard, Sport, Tow/Haul

Driveline Features

Drive mode-specific engine braking, hill assist, and creep in drive and reverse

Engine Type

4-stroke triple cylinder DOHC

Fuel System/Battery

Electronic Fuel Injection

Horsepower

110

Transmission/Final Drive

STEELDRIVE automatic transmission: D/R/P

Dimensions

Bed Box Dimensions (L x W x H)

43.4 x 56 x 13.4" (110.2 x 142.2 x 34 cm)

Box Capacity

1,500 lbs. (680 kg)

Curb Weight

2,922 lbs. (1325 kg)

Estimated Dry Weight

2,826 lbs. (1281 kg)

Fuel Capacity

13.6 gal (51.5 L)

Ground Clearance

15" (38 cm)

Hitch Type

Standard 2" (5 cm) receiver

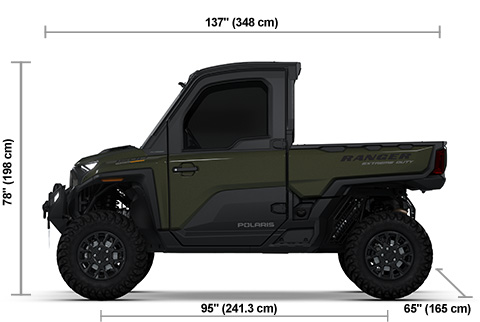

Overall Vehicle Size (L x W x H)

137 x 65 x 78" (348 x 165 x 198 cm)

Payload Capacity

1,675 lbs. (759 kg)

Person Capacity

Towing Capacity

3,500 lbs. (1588 kg)

Turning Radius

15.1 ft (4.6 m)

Wheelbase

95" (241.3 cm)

Brakes

Front/Rear Brakes

Foot-activated and power-assisted, 4-wheel hydraulic disc with dual-bore front and rear calipers

Parking Brake

Park in-transmission

Technology

Audio System

JBL Trail Pro 2000 audio

Connected Vehicle Services

RIDE COMMAND+

Rear Camera

Factory rear camera

Security

Polaris P.A.S.S. anti-theft system

Touch Screen Display

7" Display, Powered by RIDE COMMAND

Wheels & Tires

Front Tires

30 x 10-15; KENDA® CROSS TRAIL

Rear Tires

30 x 11-15; KENDA® CROSS TRAIL

Tire Ply Rating

8-ply

Wheels

15" aluminum

Suspension

Front Suspension

Dual A-arm 12" (30.5 cm) travel

Rear Suspension

Dual arched A-arm, IRS 12" (30.5 cm) travel

Exterior Features

Cargo System

Electronic lift dump box with Lock & Ride MAX accessory integration

Door Type

Powered, tinted window doors

Vehicle Protection

Large steel bumper, full-coverage skid plate, bumper D-rings, and top bar

Winch

Pro Series 6,000 LB Winch with synthetic rope, Auto Stop, wireless remote and Rapid Rope Recovery

Lighting & Electrical

Electrical System

140-amp charging system, Polaris PULSE electrical system (3-position hood and 3-position roof), USB charger, trickle charger, 12-volt accessory outlet, battery trickle-charging port

Lighting

LED headlights with LED taillights, LED rear work light, LED dome light, door puddle lighting, front LED auxiliary lights, interior accent lighting, lighting modes: low, high, accent, blackout. Blackout mode switches off the headlights and dims interior lighting

Comfort & Convenience

Cab Components

Factory-installed cab system with tinted powered doors, roof, tip-out glass windshield, tinted glass rear panel, rearview mirror, windshield wiper/washer, and sound insulation materials

Driver Instrumentation

Driver forward information center with 4" color display and analog speedometer and tachometers: user-selectable blue/red backlighting and brightness, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, oil pressure, transmission indicator, EPS indicator, voltmeter, service indicator and codes, seat belt reminder

Electronic Power Steering

High-output EPS

Heat and/or Air Conditioning

Factory-installed heat, AC, defrost, recirculation with 5 different airflow settings

Seat Type

3-person, superior contoured, bolstered, and heated bench seat with 3-point harness, adjustable driver seat, and flip-down arm rest

Speed Limiting

Speed Limiting controlled in RIDE COMMAND

Steering

Tilt & telescoping adjustment

110

65"

WIDTH

15"

CLEARANCE
