RZR Pro R Ultimate Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
1997 cc
Drive System Type
Pro Performance true 2WD/4WD/4WD lock
Driveline Features
Not equipped
Engine Type
4-stroke DOHC inline four-cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
225
Transmission/Final Drive
Automatic PVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)
29.5 x 23.8 x 8.1" (75 x 60.5 x 20.6 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
2,339 lbs. (1,061 kg)
Fuel Capacity
12 gal. (45.4 L)
Ground Clearance
16" (40.6 cm)
Hitch Type
Not Equipped

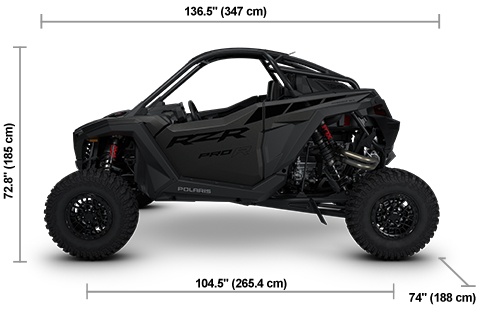

Overall Vehicle Size (L x W x H)
136.5 x 74 x 72.8" (347 x 188 x 185 cm)
Payload Capacity
740 lbs. (336 kg)
Person Capacity
2
Towing Capacity
N/A
Turning Radius
20.1'
Wheelbase
104.5" (265.4 cm)
Brakes
Front/Rear Brakes
4-wheel hydraulic disc with triple-bore front and dual-bore rear calipers; aluminum top hat rotor
Parking Brake
Park in-transmission
Technology
Audio System
Factory-tuned and integrated Rockford Fosgate Stage 4 audio system with RIDE COMMAND source unit. Includes (1) 1500-W 8-channel digital amplifier, (2) 100-W 1" tweeters, (2) 100-W 6.5" component front speakers, (2) 100-W 6.5" coaxial rear speakers, and (1) 10" subwoofer. *Audio System is IPX7 and IPX9K water immersion tested to withstand the wet elements.
Connected Vehicle Services
RIDE COMMAND+ connected vehicle services
Rear Camera
Digital rear camera
Security
Polaris P.A.S.S. anti-theft system
Touch Screen Display
10.4" (8.3 H x 6.2 W, 1280 x 960 Pixel) Display powered by RIDE COMMAND, featuring: Split-screen mapping (topographic & satellite w/ built-in GPS), Group Ride (cell-based or V2V), configurable gauges, controls, DYNAMIX visualizer, digital audio interface w/ Bluetooth & USB connectivity, AM/FM/Weather radio, hard buttons, volume knob, in-vehicle communications capable with optional Sena headsets
Wheels & Tires
Front Tires
32 x 10-15 Pro Armor Trekker; wheel size 15 x 7
Rear Tires
32 x 10-15 Pro Armor Trekker; wheel size 15 x 7
Tire Ply Rating
8-ply
Wheels
5-lug, 15" cast aluminum rim with painted beadlock
Suspension
Electronic Suspension Control System
Polaris Dynamix DV 3.0 (dual valve control) semi-active compression and rebound damping system with selectable ride modes: Comfort, Rock, Track, Baja
Front Shocks
FOX 3.0 Live Valve X2 internal bypass (electronically controlled compression and rebound)
Front Suspension
Lightweight boxed dual A-arm with 3-piece stabilizer bar and 27" (68.6 cm) usable travel, 22.25" (56.5 cm) wheel travel, unitized hubs
Rear Shocks
FOX 3.0 Live Valve X2 internal bypass (electronically controlled compression and rebound)
Rear Suspension
Boxed trailing arm with toe link, high-clearance radius rods, 3-piece stabilizer bar, 29.0" (73.7 cm) usable travel, 24.5" (62.2 cm) wheel travel, unitized hubs
Exterior Features
Cargo System
Lock & Ride; factory-equipped cargo liner
Door Type
Half doors
Vehicle Protection
Bull bumper
Winch
Not equipped
Lighting & Electrical
Electrical System
High-output 1,700-W charging system @ 3,000 RPM
Lighting
Signature animated RZR Fang Accent Lighting; white LED low/high and red LED tail/brake lights; animated interior accent lighting.
Comfort & Convenience
Cab Components
Half doors, aluminum roof
Drive Modes
Rock, Sport, Race
Driver Instrumentation
Driver Forward Information Center with 4" color display + rotary speedometer & tachometers, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet, Polaris P.A.S.S anti-theft system
Electronic Power Steering
Rack-mounted high-assist electronic power steering with quick-turn rack.
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Heated and vented bolstered bucket seats with driver-4-way adjustability (including 6" front-to-back tool-less seat slider with tilt adjustability); passenger tilt adjustability; retractable Click-6 harnesses.
Speed Limiting
Not equipped
Steering
Race-inspired steering wheel with tilt and telescoping adjustment; DYNAMIX and RIDE COMMAND push-button controls.
