RZR Pro XP 4 Ultimate Specifications

Liquid

925 cc

Isolated Xtreme Performance true on-demand AWD/2WD

Not equipped

4-stroke DOHC twin-cylinder turbocharged

Electronic Fuel Injection

181

Automatic PVT P/R/N/L/H

26 x 17.7 x 11.5" (66 x 45 x 29.2 cm)

300 lbs. (136.1 kg)

2,218 lbs (1006 kg)

13 gal. (49.2 L)

14.5" (36.8 cm)

Not Equipped

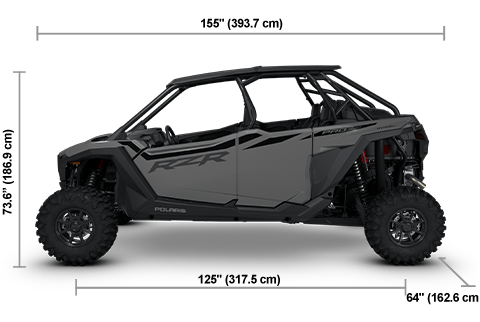

155 x 64 x 73.6" (393.7 x 162.6 x 186.9 cm)

900 lbs. (408.2 kg)

4

N/A

125" (317.5 cm)

4-wheel hydraulic disc with dual-bore XL front and dual-bore rear calipers

Park in-transmission

Factory-tuned and integrated Rockford Fosgate Stage 4 audio system with RIDE COMMAND source unit. Includes: (2) 100-W 1" tweeters, (2) 100-W 6.5" component front speakers, (2) 100-W 6.5" coaxial rear speakers, (1) 400-W 4-channel amplifier, and (1) 10" subwoofer with an integrated 400-W subwoofer amplifier. *Audio system is IPX7- and IPX9K-water immersion tested to withstand the wet elements.

Not equipped, accessory options available

Equipped

Polaris P.A.S.S. anti-theft system

7" Display, powered by RIDE COMMAND, featuring: DYNAMIX 2.0 visualizer, built-in GPS, Group Ride (cell-based or GPS-based), topographic mapping, Bluetooth & USB smartphone connectivity, AM/FM & weather radio (accessory speakers required - sold separately), in-vehicle communications capable with optional Sena headsets

30 x 10-14; wheel size 14 x 6"

30 x 10-14; wheel size 14 x 7"

8-ply

14" cast aluminum rim with 4-lug pattern

Polaris DYNAMIX 2.0 semi-active compression damping suspension system with selectable ride modes: Comfort, Sport, Firm

FOX 2.5" Podium Live Valve with bottom-out control (electronically controlled damping)

High-clearance dual A-arm with stabilizer bar and 20" (50.8 cm) usable travel, 17" (43.2 cm) wheel travel*

FOX 2.5" Podium Live Valve with bottom-out control (electronically controlled damping)

Trailing arm and high-clearance radius rods with stabilizer bar and 22" (55.9 cm) usable travel, 20" (50.8 cm) wheel travel*

Lock & Ride; convertible fold-flat rear seat storage with integrated tie-down points, 27.7 x 52.8 x 19.5" (70.4 x 134.1 x 49.53 cm)

Half doors

Bull bumper

Not equipped

High-output 900-W charging system @ 3,000 RPM

Signature animated RZR Fang Accent Lighting; white LED low/high and red LED tail/brake lights; animated interior accent lighting.

Half doors, Poly roof

Not equipped

Driver Forward Information Center with 4" color display + rotary speedometer & tachometers, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder light, gear indicator, DC outlet, Polaris P.A.S.S anti-theft system

High-assist electronic power steering with quick-turn rack

Not equipped

Not equipped

Bolstered bucket seats with driver- and passenger-4-way adjustability (including 6" front-to-back tool-less seat slider with tilt adjustability); Sub-Zero 4-point harness; rear stadium-style fold-flat seating with Sub-Zero 4-point harness.

Not equipped

Race-inspired steering wheel with tilt and telescoping adjustment; DYNAMIX and RIDE COMMAND push-button controls.
