RZR XP S Ultimate Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
High-performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
ProStar 1000 4-stroke DOHC twin cylinder.
Fuel System/Battery
Electronic Fuel Injection
Horsepower
114
Transmission/Final Drive
Automatic PVT P/R/N/L/H with geared reverse
Dimensions
Bed Box Dimensions (L x W x H)
28 x 22 x 7" (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lbs. (136.1 kg)
Estimated Dry Weight
1,803 lbs. (818 kg) CA 1,810 lbs. (821 kg)
Fuel Capacity
9.5 gal. (36 L)
Ground Clearance
16" (40.6 cm)
Hitch Type
N/A

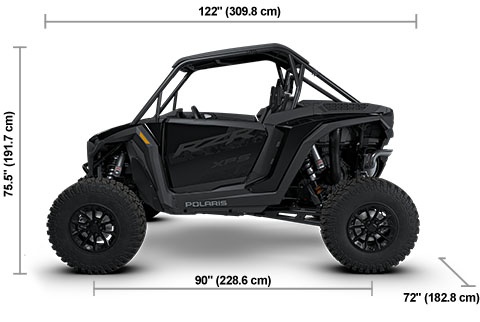

Overall Vehicle Size (L x W x H)
122 x 72 x 75.5" (309.9 x 182.9 x 191.8 cm)
Payload Capacity
740 lbs. (336 kg)
Person Capacity
2
Towing Capacity
N/A
Turning Radius
20.1'
Wheelbase
90" (228.6 cm)
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Technology
Audio System
Rockford Fosgate® Stage 3 audio (including 2 front & 2 rear co-axial speakers and external 400-W amp)
Connected Vehicle Services
Not equipped, accessory options available
Rear Camera
Equipped
Security
P.A.S.S. anti-theft system
Touch Screen Display
7" Display powered by RIDE COMMAND, featuring built‑in GPS navigation with topographic mapping, Group Ride (cell‑based or GPS‑based) with messaging, ride tracking, configurable gauges, waypoints, help alerts, AM/FM & weather radio, Bluetooth® audio & USB smartphone connectivity, and in‑vehicle communications capability with optional Bluetooth® headsets.
Wheels & Tires
Front Tires
Pro Armor Trekker; 2.0 32 x 10-15 radial tire
Rear Tires
Pro Armor Trekker; 2.0 32 x 10-15 radial tire
Tire Ply Rating
8-ply
Wheels
15" cast-aluminum rim with 5-lug pattern
Suspension
Electronic Suspension Control System
Not equipped
Front Shocks
2.5" Walker Evans® velocity shocks with 16-position adjustable clickers
Front Suspension
Dual A-arm with stabilizer bar and 25" (63.5 cm) usable travel*, 19" (48.3 cm) of wheel travel
Rear Shocks
2.5" Walker Evans® velocity shocks with 16-position adjustable clickers
Rear Suspension
Trailing arm with stabilizer bar and 25" (63.5 cm) usable travel*, 21" (53.3 cm) of wheel travel
Exterior Features
Cargo System
Lock & Ride
Door Type
Half doors
Vehicle Protection
Front bumper
Winch
Integrated 4,500-lbs. winch
Lighting & Electrical
Electrical System
900-W Charging System @ 3,000 RPM, 6-Position PULSE Bar
Lighting
Signature RZR Fang Accent Lighting, LED headlights & taillights, illuminated in-cab controls
Comfort & Convenience
Cab Components
Half doors, poly roof
Drive Modes
Rock, Standard, Sport
Driver Instrumentation
Displayed on center 7" display Programmable speed limiting
Electronic Power Steering
Standard with quick turn rack
Heat and/or Air Conditioning
Not equipped
Ride Control
Not equipped
Seat Type
Bolstered bucket seats with driver seat slider, retractable 3-point seat belts
Speed Limiting
Programmable speed limiting
Steering
Standard tilt
114
HP
72"
WIDTH
16"
CLEARANCE
