Sportsman 850 Premium Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
850 cc
Drive System Type
One-touch on-demand AWD/2WD
Driveline Features
Includes: engine braking system (EBS), Active Descent Control (ADC)
Engine Type
Prostar 4-stroke SOHC twin cylinder
Fuel System/Battery
Electronic fuel injection / 400 CCA
Horsepower
78
Transmission/Final Drive
Automatic PVT P/R/N/L/H in-line shifting
Dimensions
Estimated Dry Weight
816 lbs. (370 kg)
Front/Rear Rack Capacity
120 lbs. (55 kg) / 240 lbs. (110 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
12" (30.5 cm)
Hitch Type
Standard 1.25" (3.2 cm) receiver

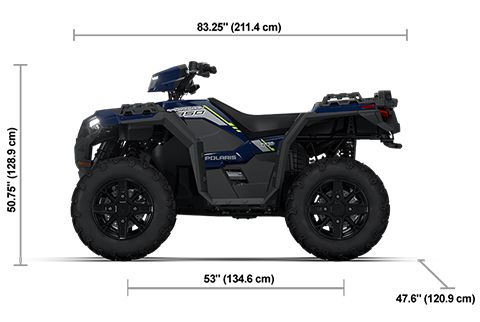

Overall Vehicle Size (L x W x H)
83.25 x 47.6 x 50.75" (211.4 x 120.9 x 128.9 cm)
Payload Capacity
575 lbs. (261 kg)
Person Capacity
1
Seat Height
37" (94 cm)
Towing Capacity
1,500 lbs. (680 kg)
Wheelbase
53" (134.6 cm)
Brakes
Front/Rear Brakes
Single lever, 3-wheel hydraulic disc with hydraulic rear foot brake
Parking Brake
Park in-transmission / lockable hand lever
Technology
Connected Vehicle Services
Not equipped, accessory options available
Touch Screen Display
Not equipped, accessory options available
Wheels & Tires
Front Tires
26 x 8 CST
Rear Tires
26 x 10; CST
Wheels
14" (35.6 cm) aluminum
Suspension
Front Suspension
Straight dual A-arm 9" (22.9 cm) travel
Rear Suspension
Straight Dual A-Arm, rolled IRS, 10.25" (26 cm) Travel
Exterior Features
Cargo System
Lock & Ride, 4 gal (15 L) front dry storage, 2 gal (8 L) rear storage
Vehicle Protection
6 moveable tie-down points, painted plastics, fender flares
Winch
Not equipped
Lighting & Electrical
Electrical System
12-volt power plug, in-pod trickle charging port, pre-wired for hand and thumb warmers
Lighting
LED pod, LED bumper lights, dual LED brake lights/taillights
Comfort & Convenience
Driver Instrumentation
All-digital gauge: speedometer, odometer, tachometer, two tripmeters, hour meter, gear indicator, fuel gauge, AWD indicator, volt meter, coolant temperature, hi-temp light, clock, DC outlet
Electronic Power Steering
Multi-select EPS
Polaris P.A.S.S. Anti-Theft System
Not equipped
Ride Control
Not equipped
Seat Type
Saddle seat
Speed Limiting
Not equipped
