Sportsman XP 1000 Ultimate Turbo Silver Specifications
Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
952 cc
Drive System Type
One-touch on-demand AWD/2WD
Driveline Features
Includes: engine braking system (EBS), Active Descent Control (ADC)
Engine Type
Prostar 4-stroke SOHC twin cylinder
Fuel System/Battery
Electronic fuel injection / 400 CCA
Horsepower
90
Transmission/Final Drive
Automatic PVT P/R/N/L/H in-line shifting
Dimensions
Curb Weight
950 lbs. (431 kg)
Estimated Dry Weight
904 lbs. (410 kg)
Front/Rear Rack Capacity
120 lbs. (55 kg) / 240 lbs. (110 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
12" (30.5 cm)
Hitch Type
Standard 1.25" (3.2 cm) receiver

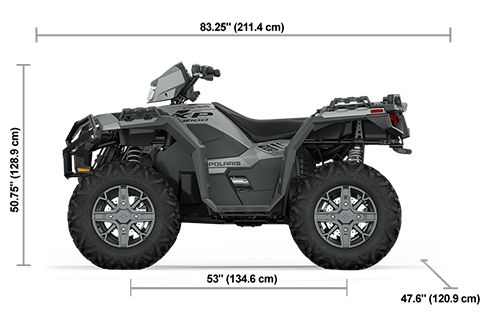

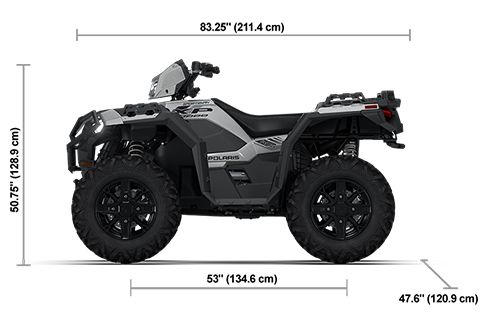

Overall Vehicle Size (L x W x H)
83.25 x 47.6 x 50.75" (211.4 x 120.9 x 128.9 cm)
Payload Capacity
575 lbs. (261 kg)
Person Capacity
1
Seat Height
37" (94 cm)
Towing Capacity
1,500 lbs. (680 kg)
Wheelbase
53" (134.6 cm)
Brakes
Front/Rear Brakes
Single lever, 4-wheel hydraulic disc with hydraulic rear foot brake
Parking Brake
Park in-transmission / lockable hand lever
Technology
Connected Vehicle Services
RIDE COMMAND+ connected vehicle services including real‑time vehicle location, vehicle security alerts, remote ignition lockout, vehicle health diagnostics, and maintenance reminders. Free three-year subscription of RIDE COMMAND+ included with purchase of vehicle when factory installed.
Touch Screen Display
7" Display powered by RIDE COMMAND, featuring built‑in GPS navigation with topographic mapping, Group Ride (cell‑based or GPS‑based) with messaging, ride tracking, configurable gauges, waypoints, help alerts, and USB smartphone connectivity. Includes Plow-Mode when properly equipped.
Wheels & Tires
Front Tires
27 x 9-14; Duro
Rear Tires
27 x 11-14; Duro
Wheels
14" (35.6 cm) aluminum
Suspension
Front Suspension
Sealed high-clearance arched dual A-arm 9" (22.9 cm) travel
Rear Suspension
Sealed High Clearance Arched Dual A-Arm, rolled IRS, 10.25" (26 cm) Travel
Exterior Features
Cargo System
Lock & Ride, 4 gal (15 L) front dry storage, 2 gal (8 L) rear storage, 6 movable tie-down points
Vehicle Protection
Front Ultimate Series bumper, painted plastics, painted springs, fender flares
Winch
3,500 LB Winch with synthetic rope and Auto Stop
Lighting & Electrical
Electrical System
In-pod battery charge port, in-pod USB charger, PIN-activated security system (P.A.S.S.), 12-volt power plug, in-pod trickle charging port
Lighting
High-output LED pod, high-output LED bumper lights, dual LED brake lights/taillights
Comfort & Convenience
Driver Instrumentation
All-digital gauge: speedometer, odometer, tachometer, two tripmeters, hour meter, gear indicator, fuel gauge, AWD indicator, volt meter, coolant temperature, hi-temp light, text and call notifications
Electronic Power Steering
Multi-select EPS
Polaris P.A.S.S. Anti-Theft System
Equipped
Ride Control
Not equipped
Seat Type
Premium cut and sew saddle seat
Speed Limiting
Not equipped
90
HP
47.6"
WIDTH
12"
GROUND CLEARANCE
