RANGER XP 1000 CAB Specifications

Change Model

Engine & Drivetrain

Cooling

Liquid

Cylinders Displacement

999 cc

Drive System Type

Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode

Driveline Features

N/A

Engine Type

4-stroke twin cylinder DOHC

Fuel System/Battery

Electronic fuel injection

Horsepower

Transmission/Final Drive

Gen 2 Automatic PVT H/L/N/R/P; shaft

Dimensions

Bed Box Dimensions (L x W x H)

36.7 x 54.2 x 12.5" (93 x 138 x 32 cm)

Box Capacity

1,000 lbs. (454 kg) CA Models: 600 lbs. (272 kg)

Curb Weight

2,058 lbs. (933 kg)

Estimated Dry Weight

1,930 lbs. (875 kg)

Fuel Capacity

11.5 gal (43.5 L)

Ground Clearance

14" (36 cm)

Hitch Type

Standard 2" (5 cm) receiver

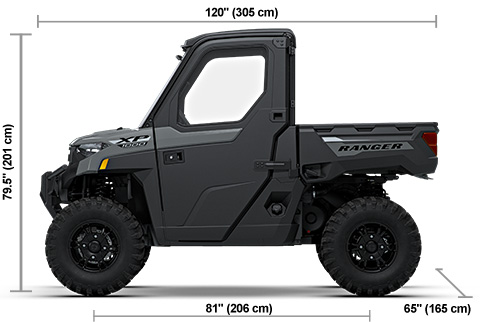

Overall Vehicle Size (L x W x H)

120 x 65 x 79.5" (305 x 165 x 201 cm)

Payload Capacity

1,275 lbs. (578 kg) CA Models: 1,100 lbs. (499 kg)

Person Capacity

Towing Capacity

2,500 lbs. (1,134 kg)

Turning Radius

13' (4 m)

Wheelbase

81" (206 cm)

Brakes

Front/Rear Brakes

4-wheel hydraulic disc with dual-bore front and rear calipers

Parking Brake

Park in-transmission

Technology

Audio System

Not equipped, accessory options available

Connected Vehicle Services

Not equipped, accessory options available

Security

P.A.S.S. anti-theft system

Touch Screen Display

Not equipped, accessory options available

Wheels & Tires

Front Tires

29 x 9-14; Pro Armor X Terrain

Rear Tires

29 x 11-14; Pro Armor X Terrain

Tire Ply Rating

8-ply

Wheels

14" aluminum

Suspension

Front Suspension

Dual A-arm, 10" (25.4 cm) travel

Rear Suspension

Dual A-arm, 10" (25.4 cm) travel

Exterior Features

Cargo System

Gas-assist dump box with Lock & Ride accessory integration

Door Type

Powered window doors

Vehicle Protection

Large steel bumper, full-coverage skid plate, A-arm guards

Winch

Not equipped, accessory options available

Lighting & Electrical

Electrical System

140-amp charging system, Polaris Pulse electrical system (6-position hood and 6-position roof), USB charger, 12V accessory outlet, battery trickle-charging port

Lighting

Halogen Headlamps, 55W low beam, 60W high beam, Dual LED Taillamps

Comfort & Convenience

Cab Components

Factory-installed cab system with powered doors, roof, glass windshield, glass rear panel, windshield wiper/washer, and sound insulation materials

Driver Instrumentation

Dual-sweep analog dials with 4" LCD rider information center: user selectable blue/red backlighting and brightness, passcode protection, programmable service intervals, speedometer, programmable speed limiting, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder

Electronic Power Steering

High-output EPS

Heat and/or Air Conditioning

Factory-installed heat, AC, defrost

Seat Type

3-person bolstered bench seats with 3-point harness

Speed Limiting

Speed limiting controlled in gauge

Steering

Tilt adjustment

65"

WIDTH

14"

GROUND CLEARANCE
